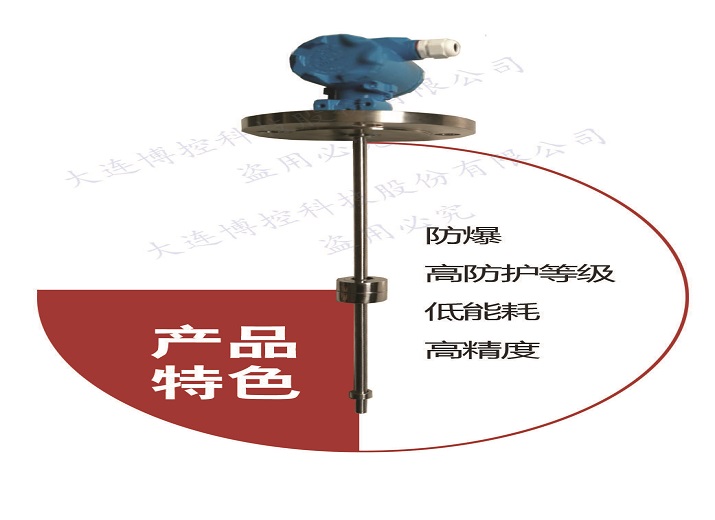

LT1400 Magnetostriction Liquid level meter Product profile





LT1400 Magnetostriction Liquid level meter Product profile

Displacement measurement system with high measurement accuracy and reliability in the world. It has the characteristics of high precision,high resolution,good repeatability,stability and reliability,non-contact measurement, long life, convenient installation, strong environmental adaptability and so on. Its output signal is a real absolute position output,there is no signal drift or variable value, even if the power supply interrupt reconnection will not pose a problem for data reception. It can be widely used in the measurement and control of liquid level and mechanical displacement of various liquid tanks in petroleum, chemical, electric, pharmaceutical,food,beverage.Construction machinery and other industries.


Mainly technical data

Supply power:24VDC;

Output signal:RS485 Modbus RTU

range:3米(option);

Working temperature:-40-85℃;

connection:flange,DN50,RF Seal face;

Nominal pressure 1.6MPa,meets HG20592 ;

Accuracy:0.05%F.S

Resolution Ratio 0.01%F.S;

Insert Zone:上50mm,下50mm;

Anti-hazard classification:ExdBT5;

Enclosure protection grade:IP68;


Touch Screen Model:BC-CP-4-M-DC24;

Touch Screen Display data:Display2~6 Channels at the same time

Touch Screen size:7 Inches

Communication:RS485 Modbus RTU;
